Micropatterns on glass and in foils
Graticules Optics is stocking a large range of chromium-plated graticule (reticle)
micropatterns on glass, as well as electroformed patterns on metal foils.
These patterns are used as calibration
standards, encoders, resolution charts, inspection patterns, etc. Graticules
also offering the capability to make products to
custom specification. This
service is available for patterns on glass, quartz, plastic and many other
substrates. Electroformed and etched patterns are available on foil products
in copper, gold, nickel, silver and other metals.

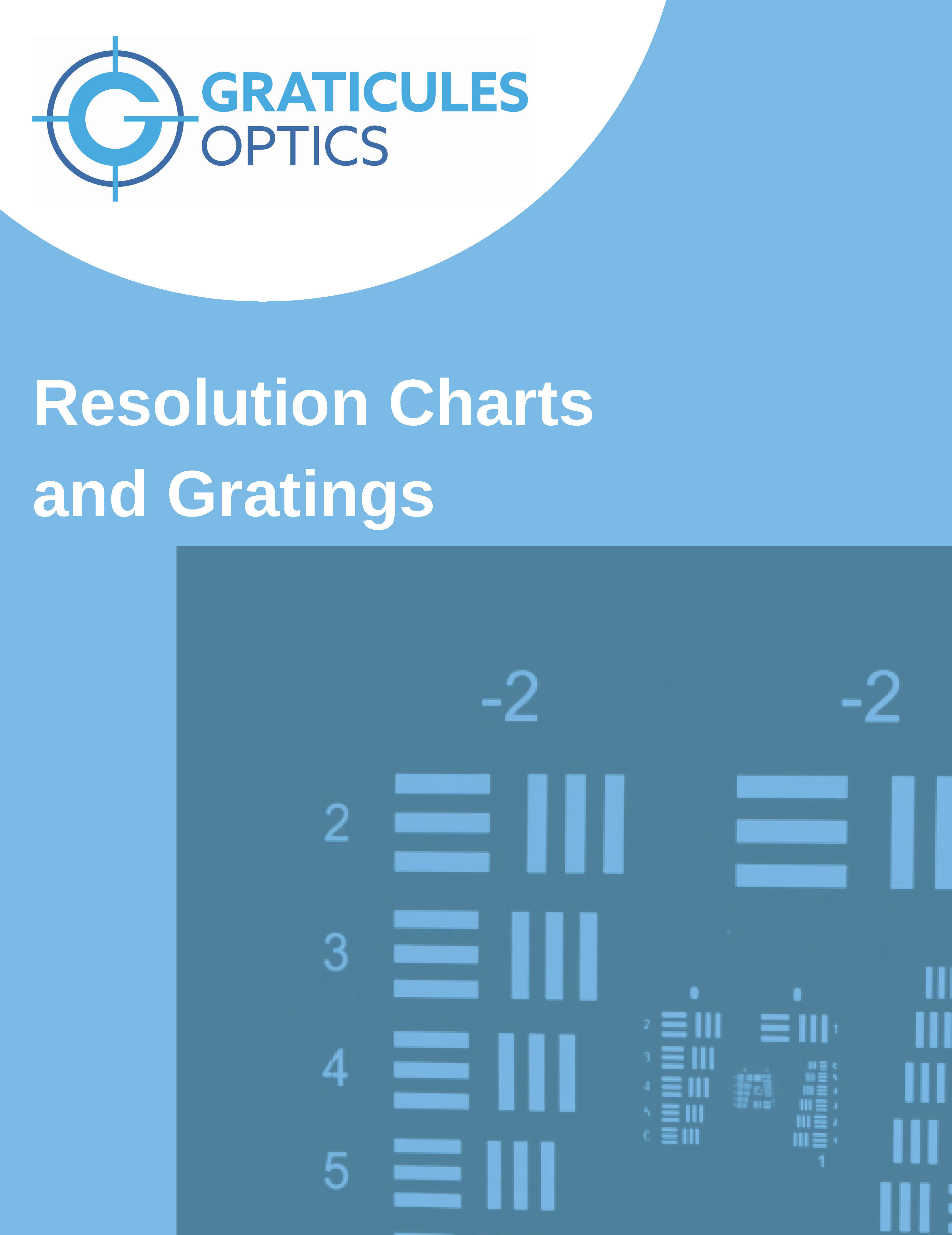

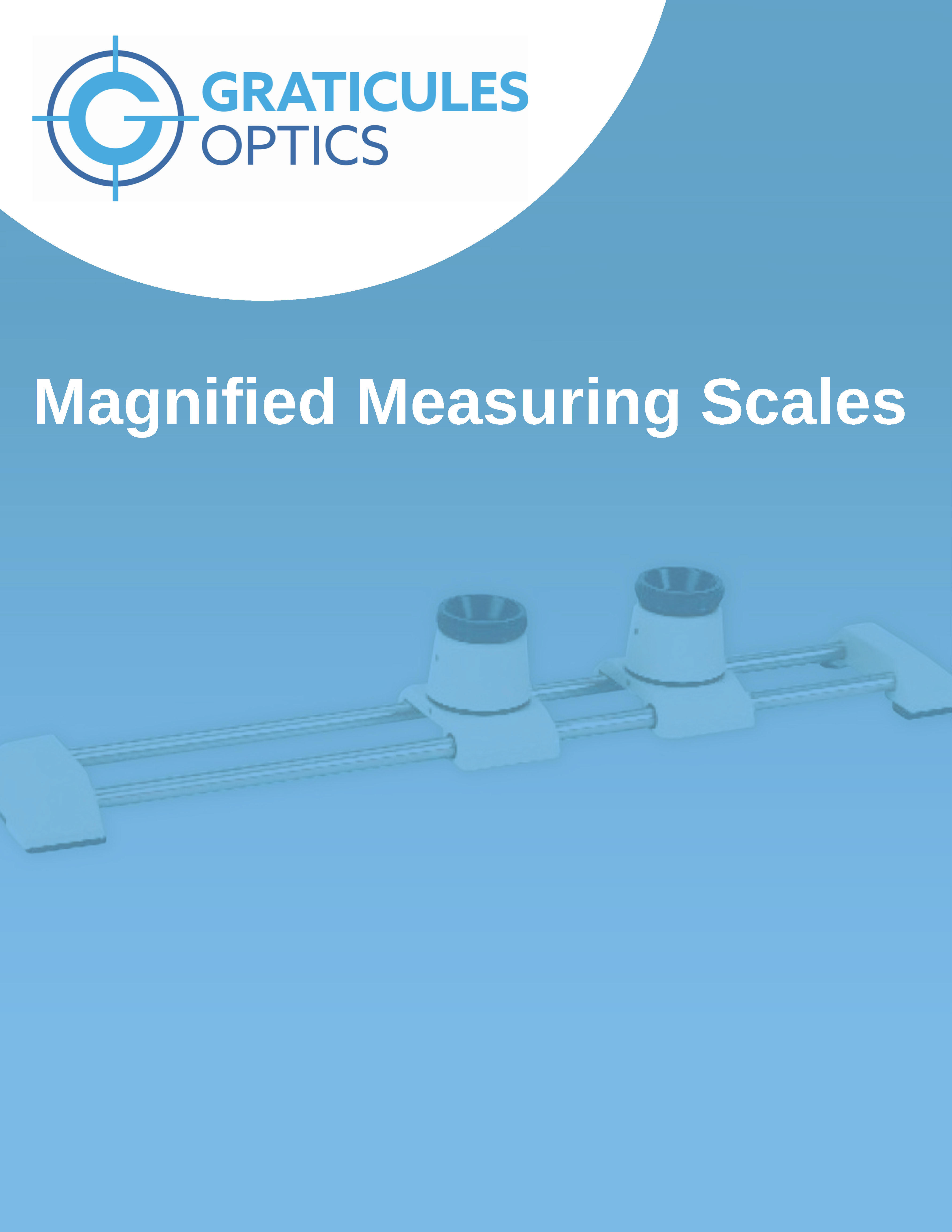

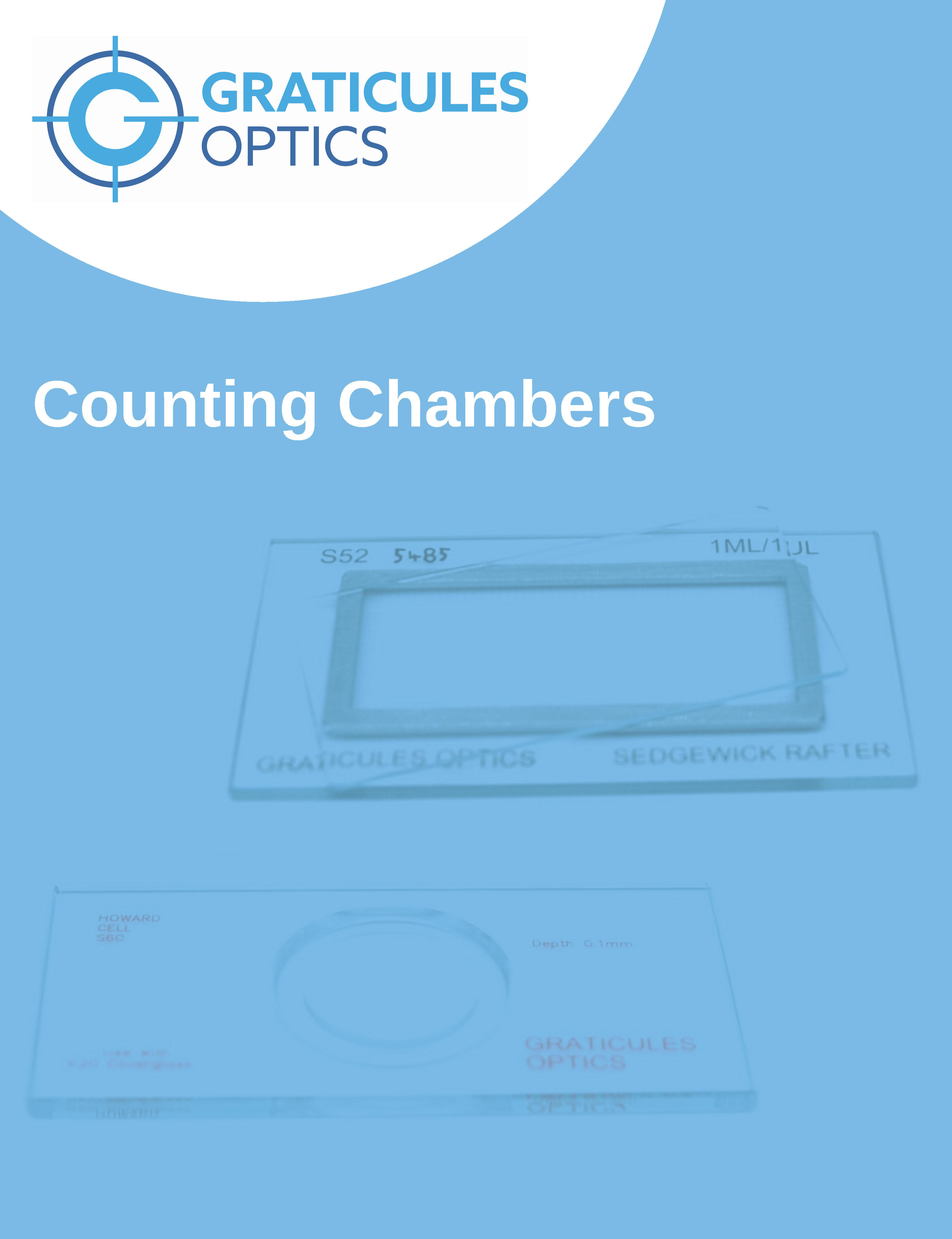

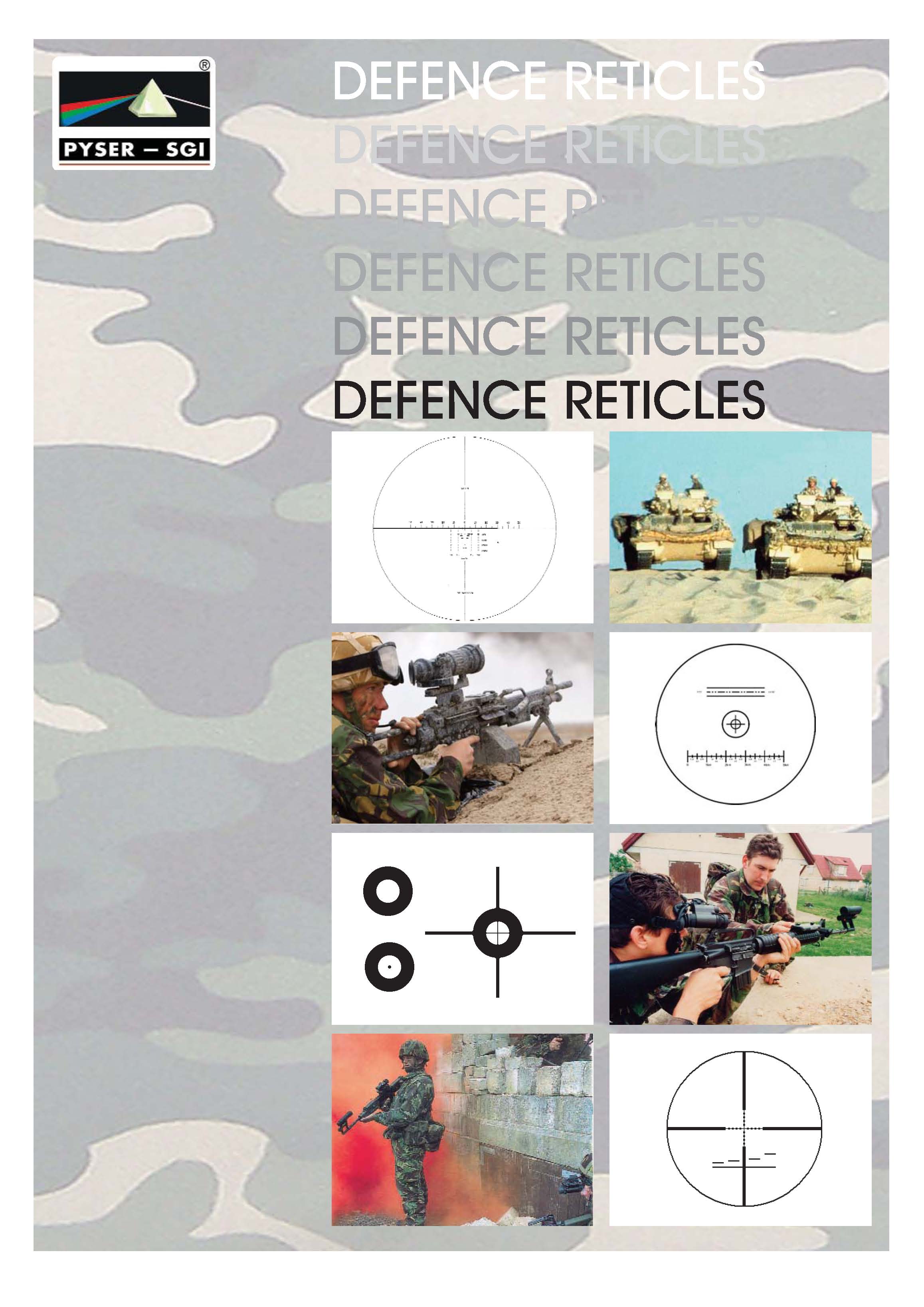

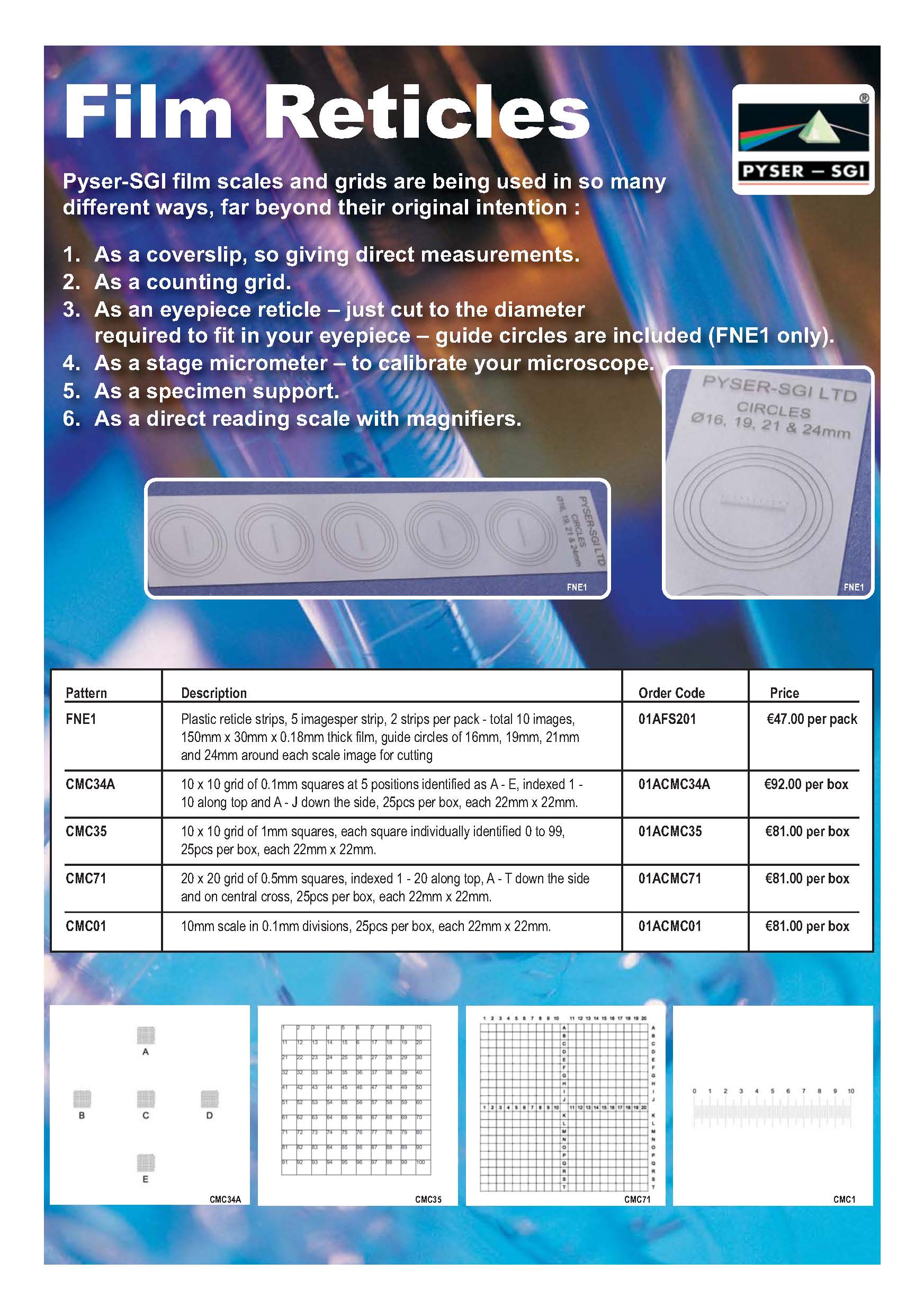

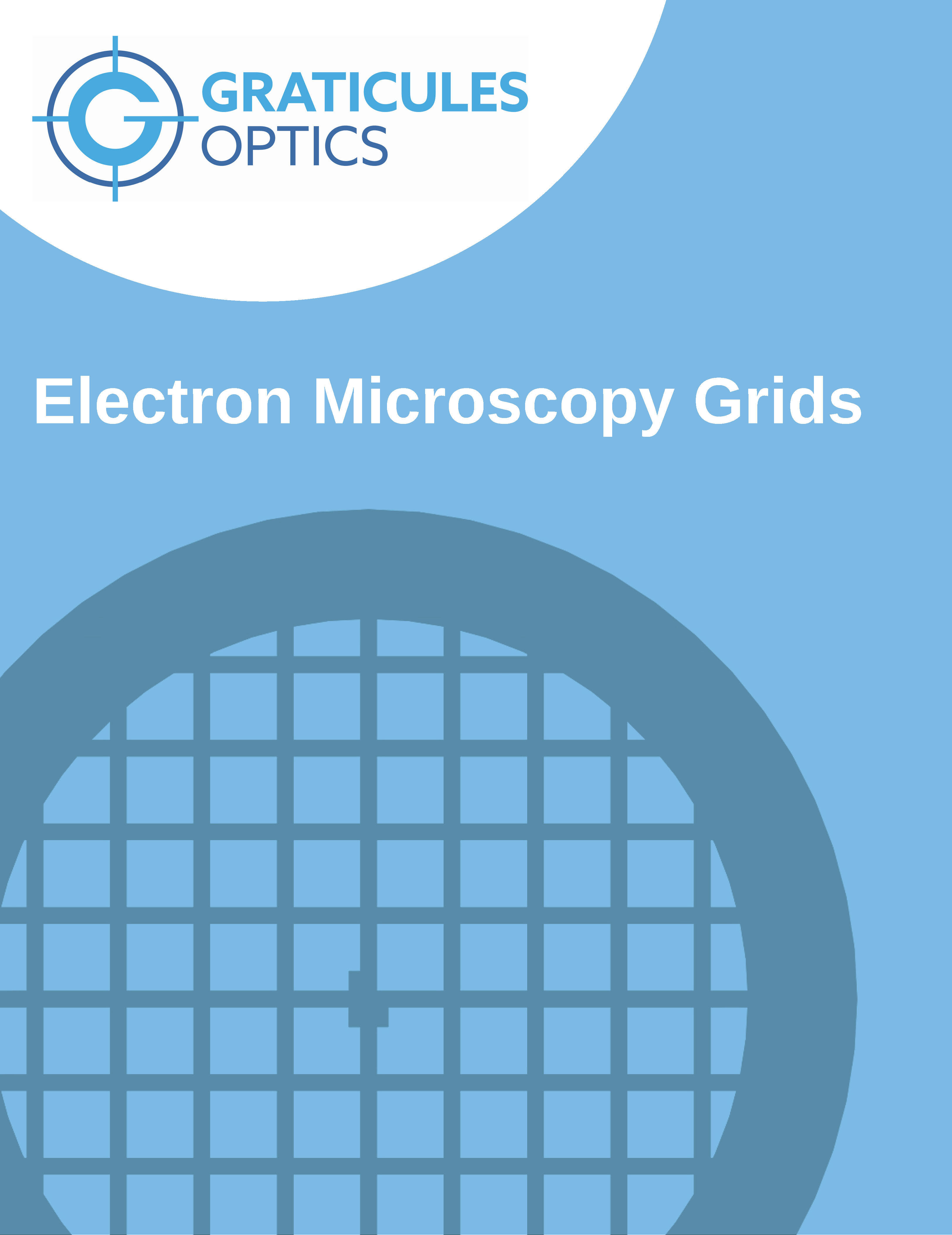

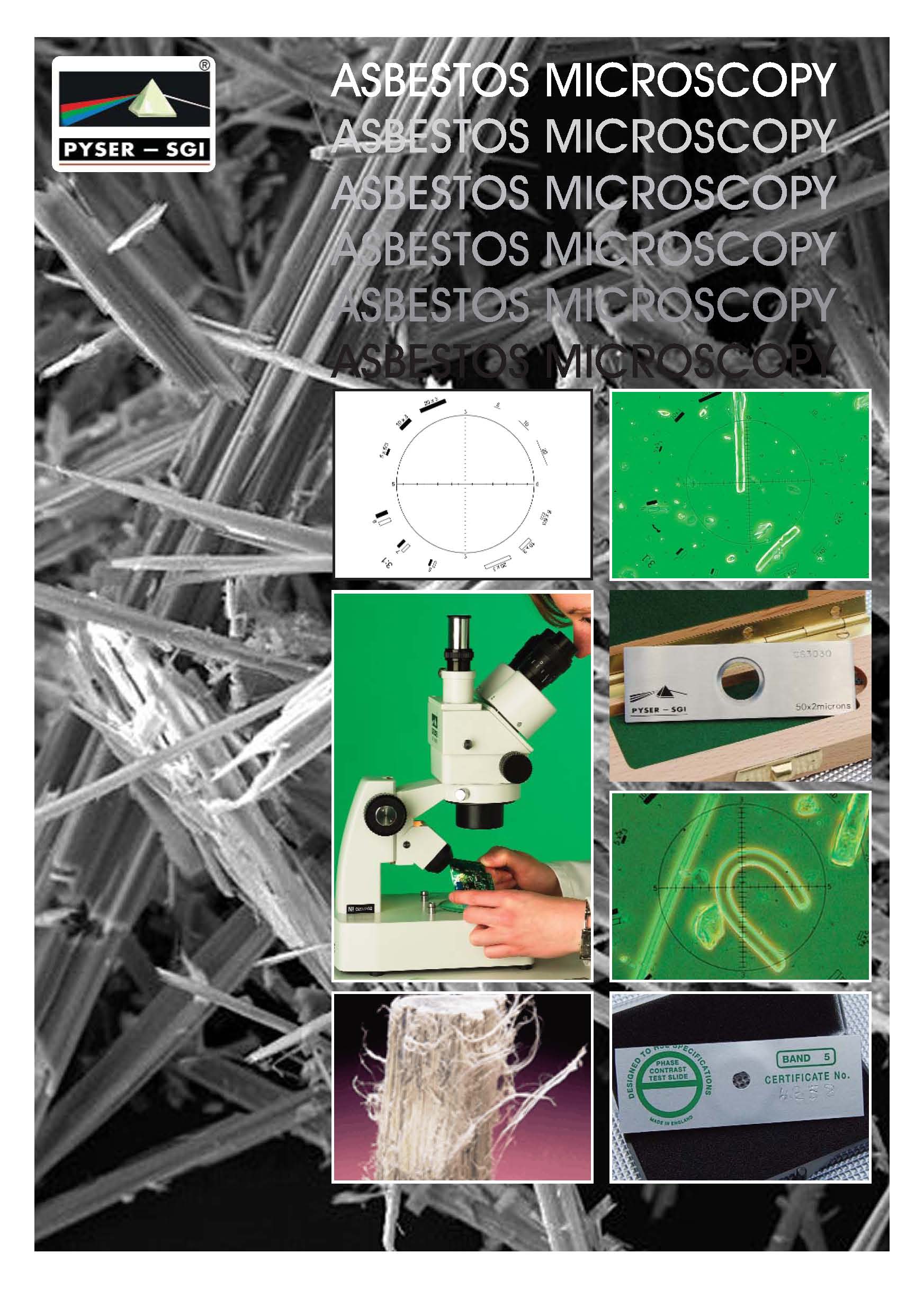

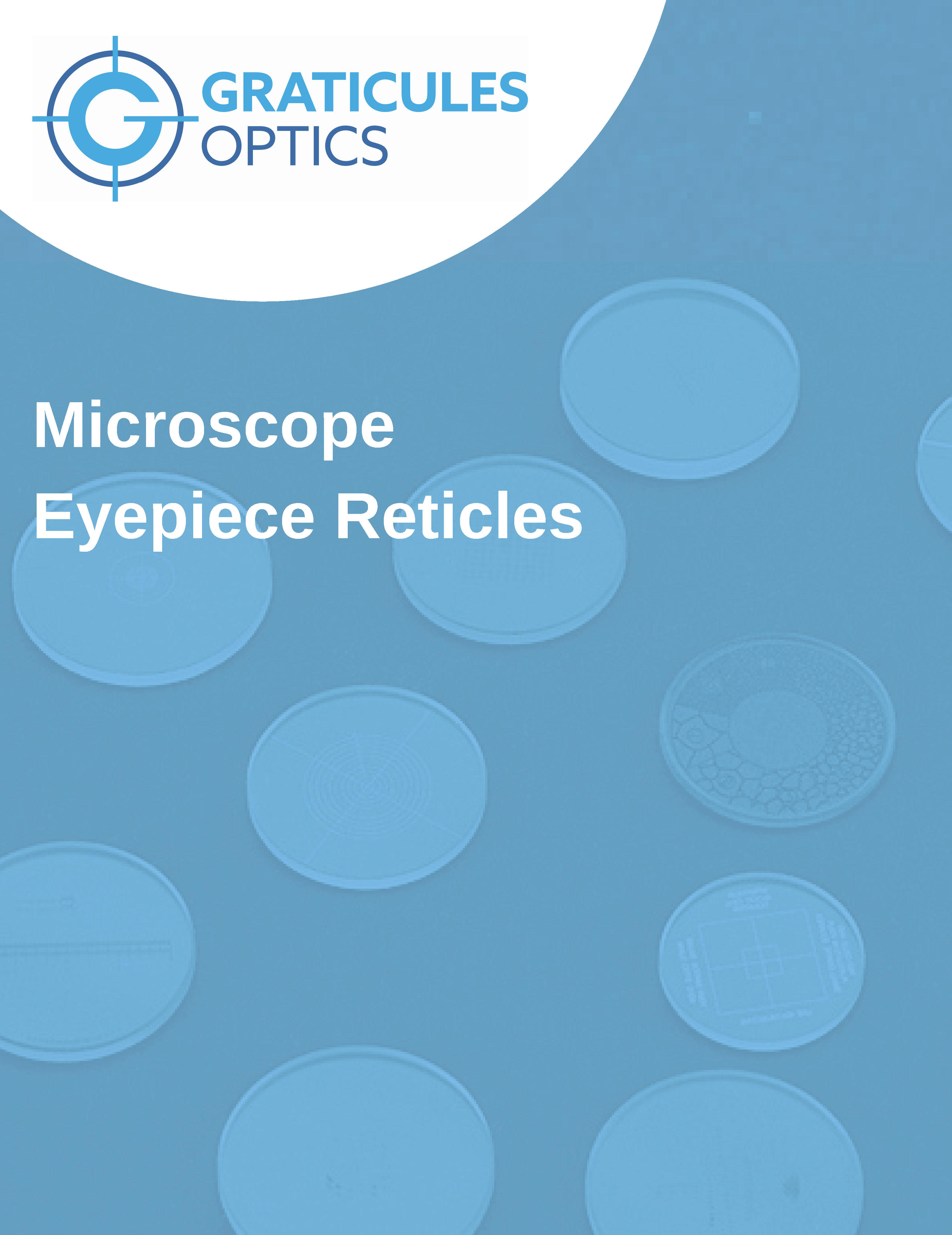

Graticules brochures for downloading:
